DUOLITH SD1
Modular radial and focused shock wave therapy (ESWT) with ultrasound imaging for efficient pain therapy in orthopaedics.
Modular Shock Wave Therapy
Radial & Focused
Combined radial and focused shock wave therapy for versatile treatment options in orthopaedics
FALCON® Handpiece
High-performance radial handpiece with all control elements integrated for independent operation
SEPIA® Handpiece
Focused shock wave handpiece with extended energy range and depth of focal zone: 0–65 mm
Diagnostic Ultrasound
Optional integrated ultrasound imaging with colour Doppler for combined diagnosis and treatment
Radial & Focused Shock Wave
The DUOLITH® SD1 »ultra« shock wave system represents a clear modular concept that meets the growing demands of a medical practice.

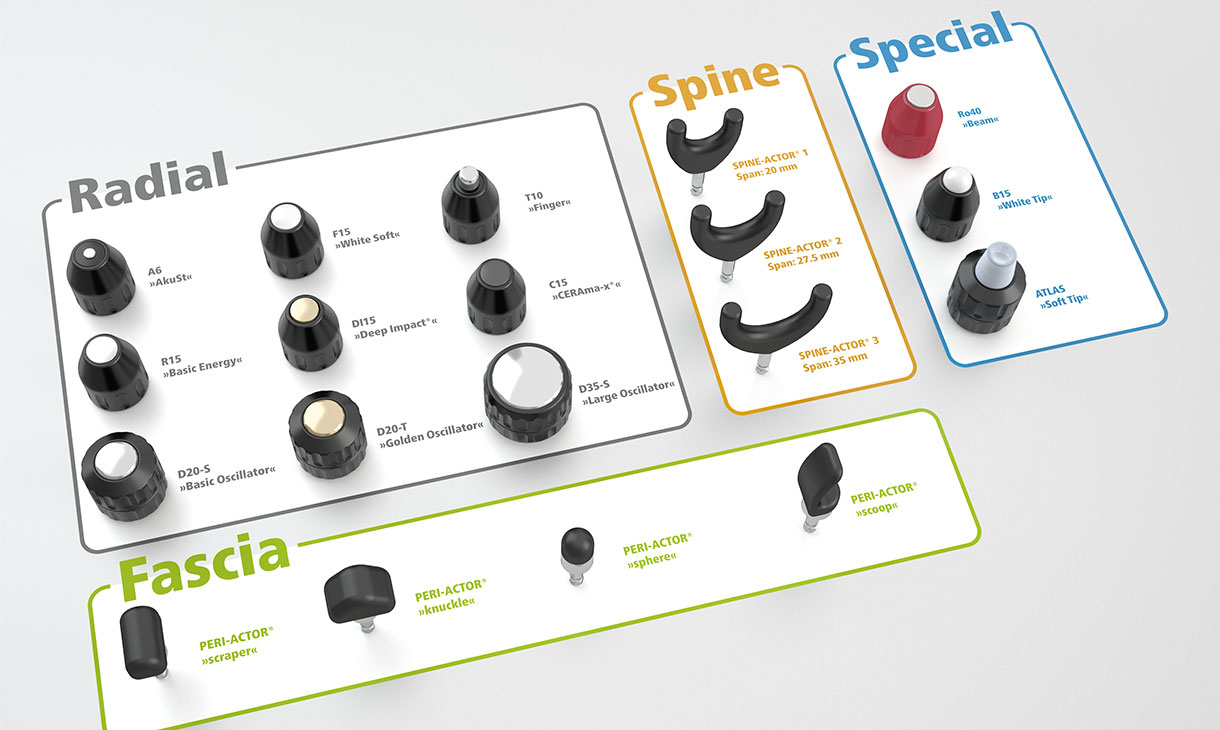

Radial Module with FALCON® Handpiece
The high-performance FALCON® handpiece allows the radial module to be operated also independently of the control unit. All treatment parameters such as pressure, frequency and number of shocks can be uniquely entered and retrieved via the operating panel of the handpiece display.
Highlights: Extended energy range: 0.3 – 5 bareff · 4 connections for R-SW, V-ACTOR®, VACU-ACTOR®
Focused Module with SEPIA® Handpiece
The focused shock wave serves for treating near-surface as well as deep target areas in the body. The SEPIA® handpiece renders treatment directly at the patient easy and efficient. All the important control elements have been integrated into the handpiece.
Highlights: Focal zone depth: 0 – 65 mm · Penetration depth: up to 125 mm · Energy transfer: 0.01 – 0.55 mJ/mm²

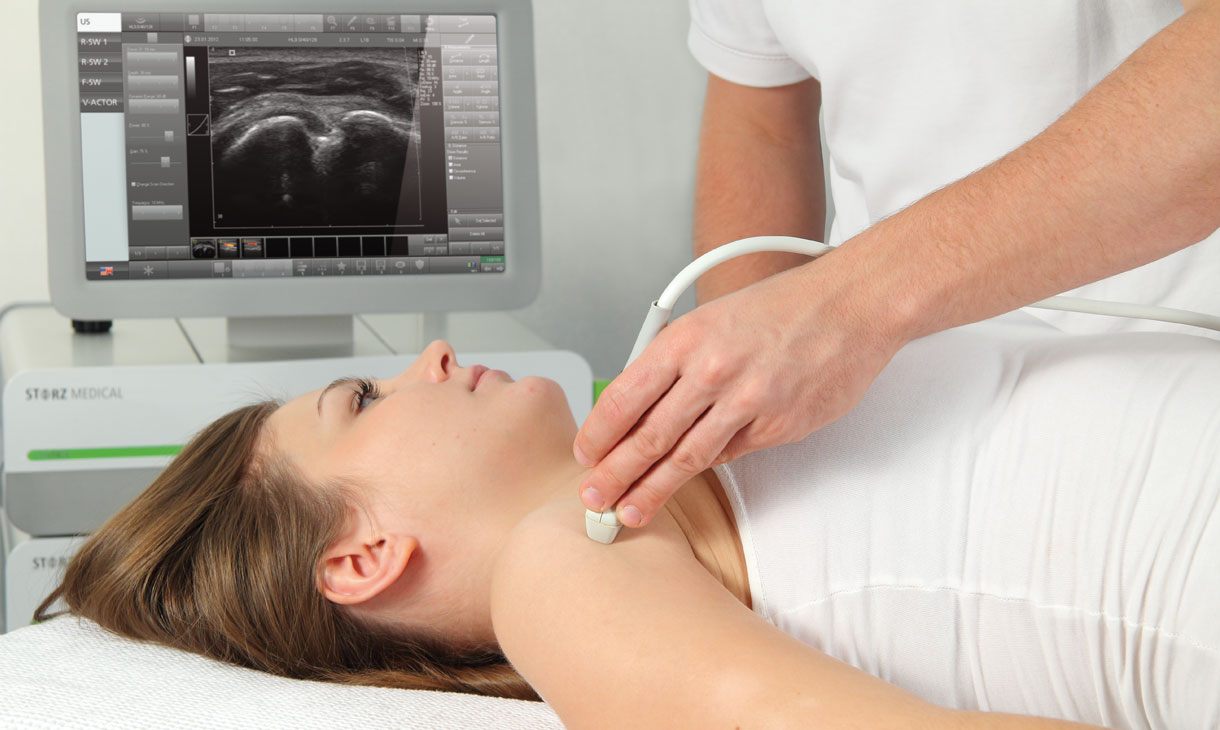

Diagnostic Ultrasound (Optional)
Accurate diagnosis of the indication and identification of the pain zone are prerequisite to achieving the most successful treatment. Therefore, STORZ MEDICAL offers the option of an integrated diagnostic ultrasound imaging system with colour Doppler for the DUOLITH® SD1 »ultra«.
Highlights: Diagnosis and therapy combined · Colour Doppler High resolution: 1.5 – 15 MHz · Saving of ultrasound images directly in the patient management system
Designed for Clinical Excellence
Integrated Handpiece Controls
All control elements integrated into the handpiece for effective and comfortable work directly on the patient.
Easy Coil Replacement
Reduced revision time and costs thanks to easy replacement of the cylindrical coil in the focused module.
Extended Energy Range
Optional C-ACTOR® handpiece with extended energy range for use in dermatology and pseudarthrosis near the surface: 0.03 – 1.24 mJ/mm².
Integrated Ultrasound
Diagnosis and therapy combined in one system with colour Doppler and DICOM interface (optional).
Modular Concept
Flexible system configuration: Radial only, focused only, or combined radial and focused system with optional ultrasound.
Vibration & Vacuum Therapy
Optional V-ACTOR® vibration therapy and VACU-ACTOR® vacuum therapy as ideal complements to shock wave therapy.
Shock Wave System
Combined Radial & Focused Shock Wave Therapy
The DUOLITH® SD1 »ultra« shock wave system represents a clear modular concept that meets the growing demands of a medical practice regarding therapy and diagnosis. This is not only beneficial to newcomers to the field of extracorporeal shock wave treatment but also to experienced users.
The system features a 15.6" touch screen control unit with optional diagnostic ultrasound. The radial module with FALCON® handpiece and the focused module with SEPIA® handpiece can be combined or used independently. The optional vibration therapy with the V-ACTOR® »HF« handpiece and vacuum therapy using VACU-ACTOR® technology are ideal complements.

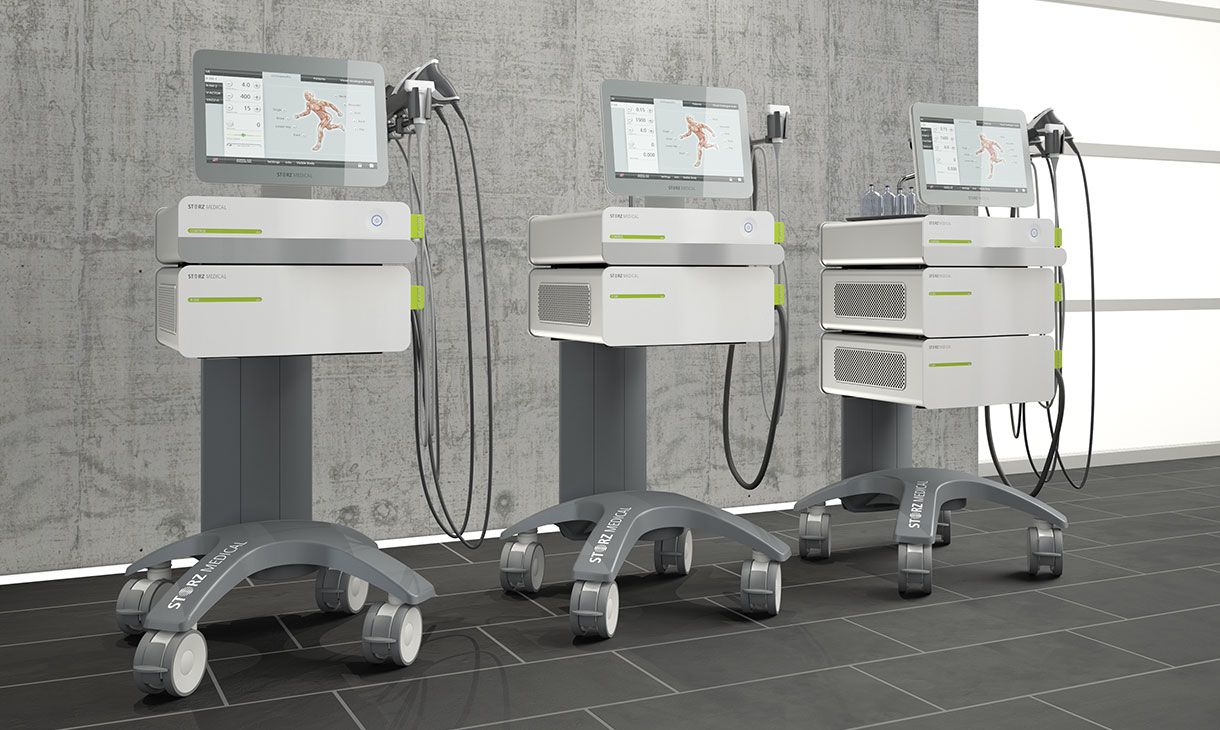

System Configurations
Radial System
Weight: 59 kg · Pressure: max. 5 bar · Frequency: 1 – 21 Hz · V-ACTOR® handpiece (optional): 1 – 50 Hz · VACU-ACTOR® technology (optional)
Focused System
Weight: 60 kg · Standard energy range: 0.01 – 0.55 mJ/mm² · Extended energy range (optional): 0.03 – 1.24 mJ/mm²
Combined System
Weight: 83 kg · 15.6" touch screen · Diagnostic ultrasound imaging (optional): 1.5 – 15 MHz · Drawer module "Store Case" (optional)
